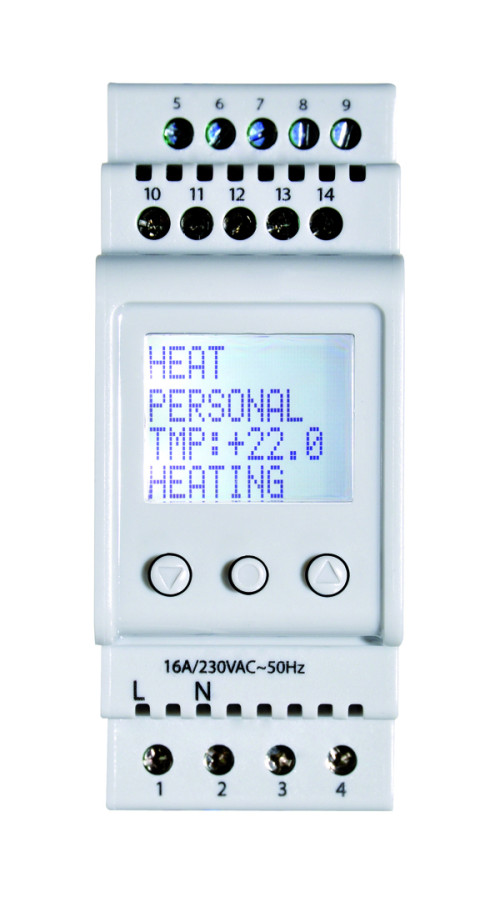

ITR-80 Universal thermostat for manifold installation with digital display

The ITR-80 thermostat is designed for DIN rail mounting, making it easy to install in the switch cabinet. Four different modes can be programmed: Heating, Cooling, Industrial or MAX/MIN mode. The device is universally designed for heating and cooling applications. Various control characteristics can be influenced via the parameterization. The setpoint and all controller parameters are set using three operating buttons. The LED signals the status of the control output. The thermostat is supplied with a voltage of 230 V. Incl. daily/weekly program, temperature range: -15 to °C, temperature sensor: NTC, sensor cable length: 3 m (can be extended on site to max. 50 m), space requirement: 2TE, switching current: 16 A, 1 relay contact, mounting: on standard mounting rail, digital switch input, CE-compliant.
