LAVA LUX Infrared Heating Panel with Integrated LED Lighting

From £813.66 (EX VAT)

Price:

  • Energy Efficient
  • 5 Year Warranty
  • Reduce Heating Cost
  • Easy Installation
  • Zero Maintenance
  • Fast Delivery
Colour
White (light colour 4000 K neutral white)
Material
Safety glass, white aluminium frame
Temperature
Max. 120 °C surface temperature
Voltage
230 V
Output
370 - 400 W (heating), 58 W (LED)
Surface temperature
Max. 120 °C at normal indoor temperatures
Surface
Safety glass; frame: white aluminium
Light colour
4000 K neutral white, CRI Ra >90, glare rating UGR <19
LED voltage
48 V DC (transformer included, IP 20, protection class II)
Device/installation depth
25/55 mm
IEC Protection Class
I
IP Rating
IP 21
Connection cable
2 x 1 m, 3 x 1.0 mm² (hard wiring required - not supplied with a UK plug)
Energy efficiency rating (lighting)
E
Warranty
5 years

Product description

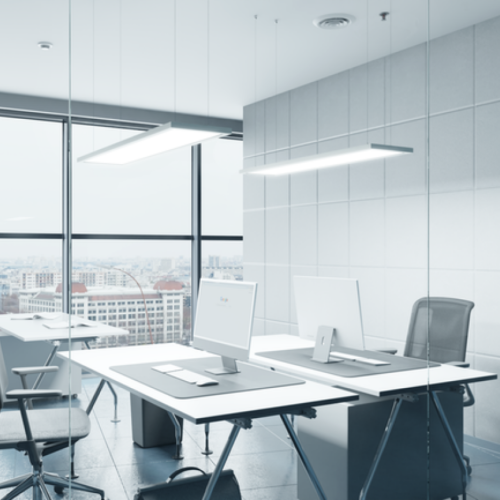

Discover the LAVA LUX, the ceiling panel that heats and lights your room in a single unit. Thanks to its patented technology the entire glass surface lights up, emitting homogeneous, glare-free light in neutral white (4000 K, CRI over 90, UGR under 19) while efficient infrared warmth radiates gently downwards - two building services in one elegant panel.

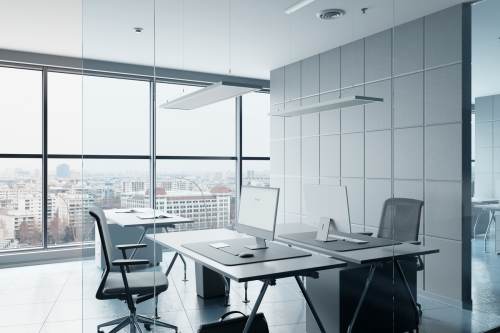

That combination makes the LAVA LUX ideal for workplaces and living spaces alike: offices, surgeries and reception areas as well as kitchens, bathrooms and home offices. Heating and light can be controlled separately or together, and an optional dimmer with hand-held transmitter puts the light level at your fingertips. Low LED consumption keeps running costs down.

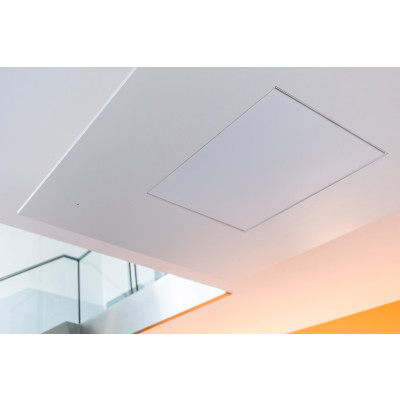

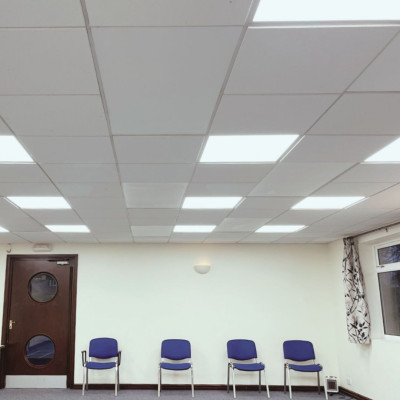

Install it directly onto the ceiling, suspend it with the LAVA-DA suspension set, or drop the 595 x 595 mm version into a modular ceiling in place of a standard module. The panel is hard wired by a qualified electrician (2 x 1 m connection, supplied without a plug) and pairs with your preferred ETHERMA thermostat for an Ecodesign-ready system - it then needs no service or maintenance at all.

Choose from three sizes - a 1200 x 300 mm strip, a 620 x 620 mm square and the 595 x 595 mm modular grid version - each backed by a 5-year ETHERMA warranty. Order today from ARC Thermal Solutions - the exclusive UK partner for ETHERMA.

Want This Installed - or Not Sure If It's Right for You?

You can order this product directly, but if you'd prefer professional installation or want to confirm it's the right solution for your space, our team is happy to help. Get in touch for expert advice and a no-obligation installation quote.
